STR20 Self-Contained Track Rig
Solar

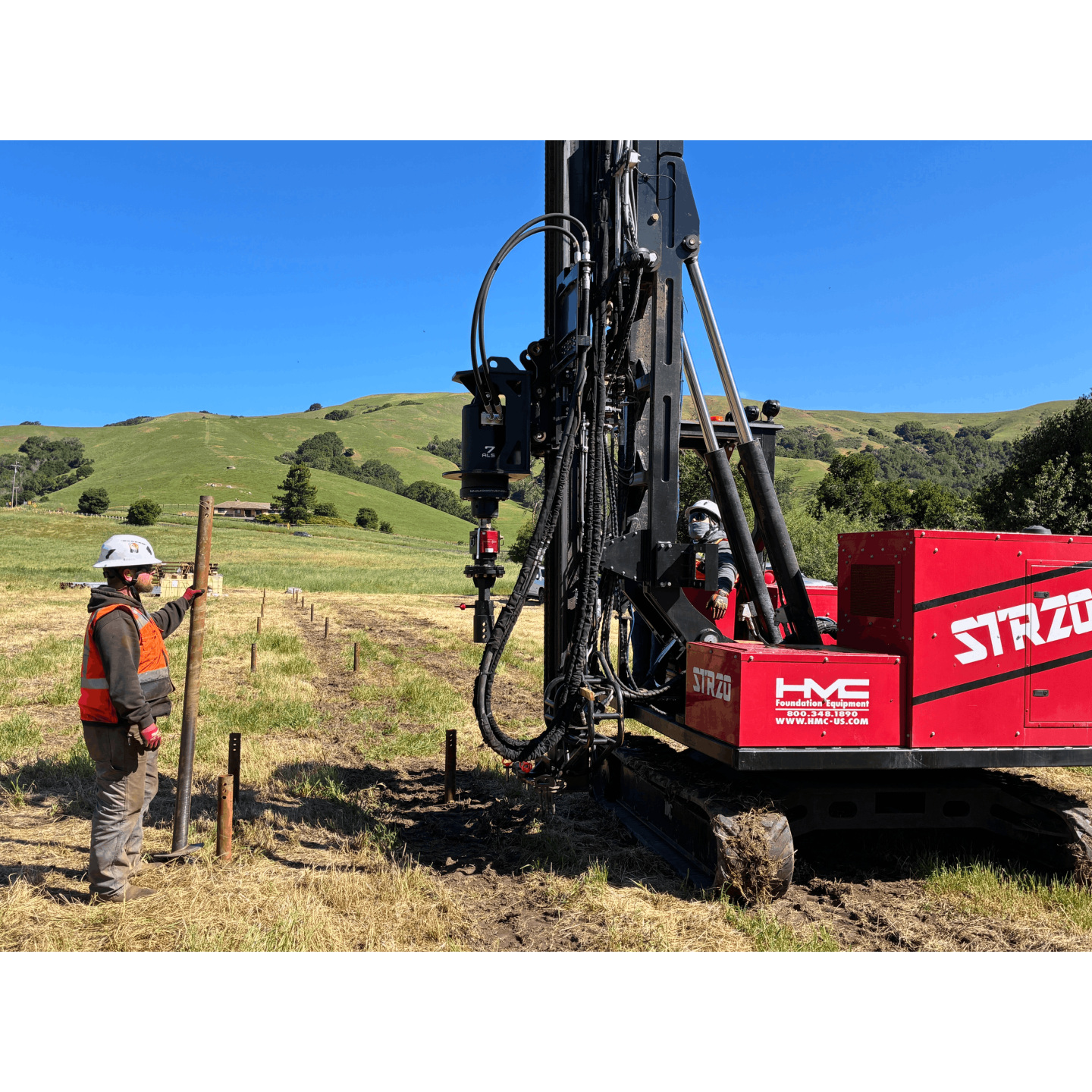

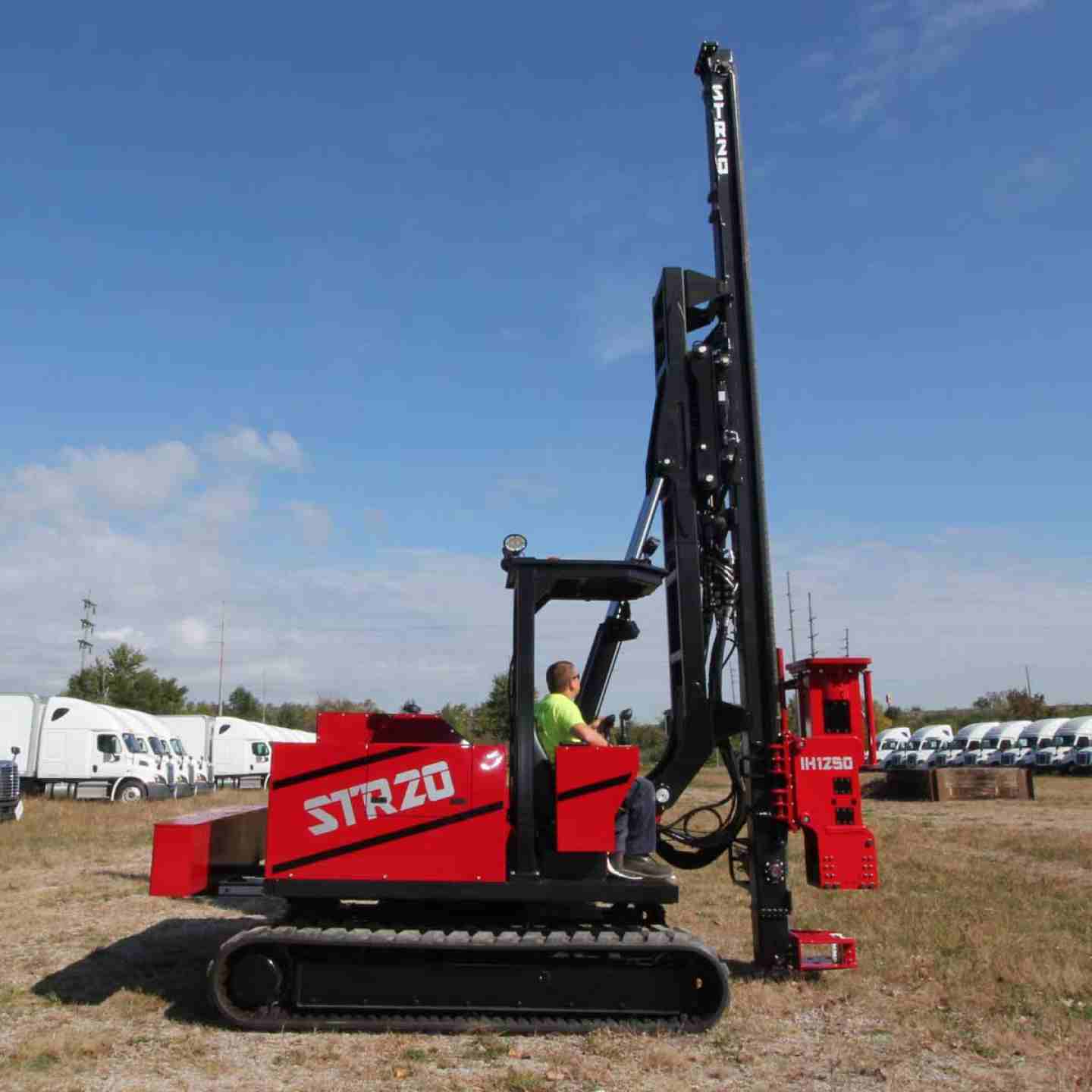

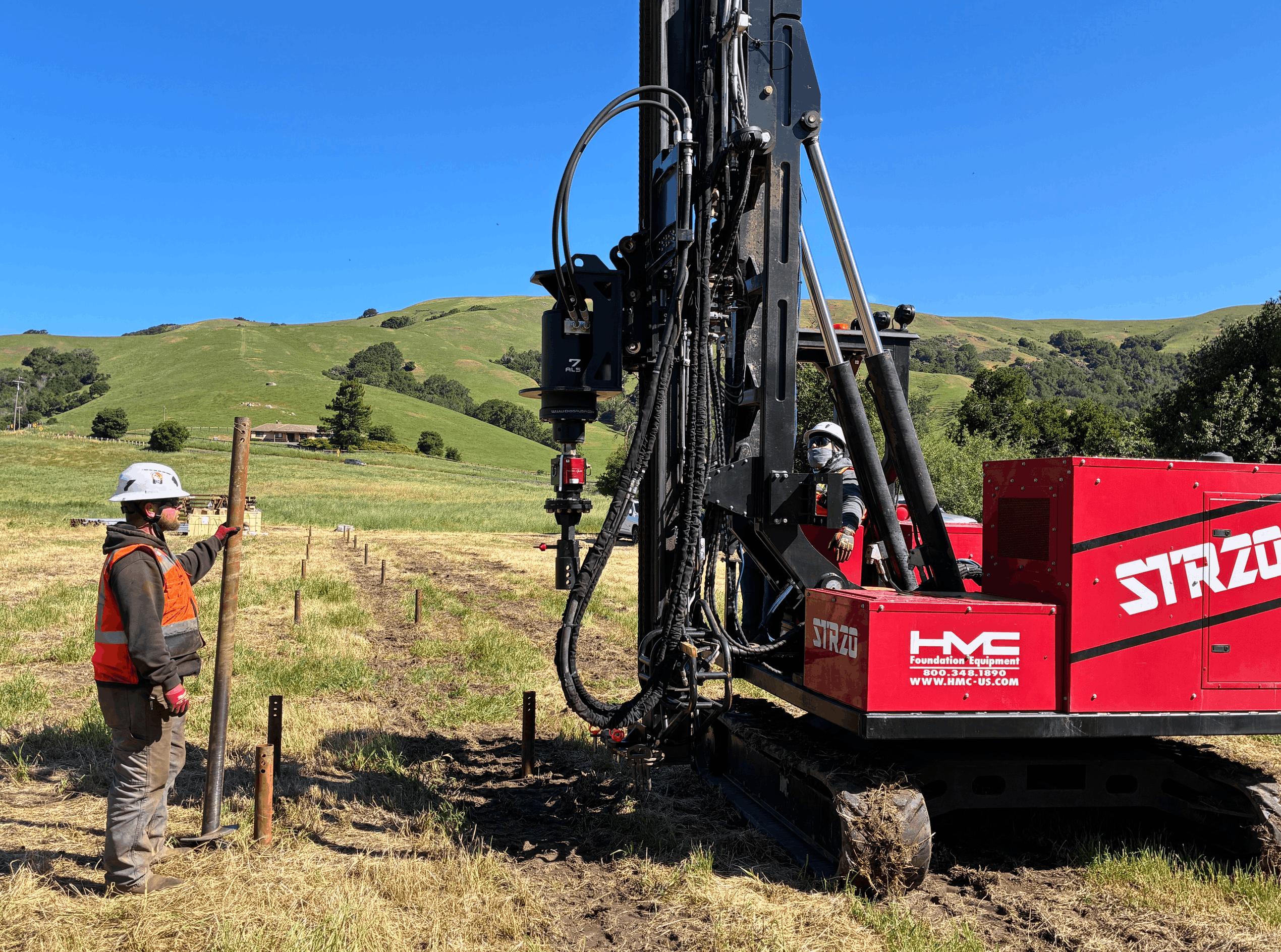

The HMC STR20 combines the power of an impact driver, vibratory driver, and drill tool into one versatile self-contained track rig, giving operators unmatched flexibility on solar and small-pile installation projects.
- Three quick-change attachments for maximum versatility
- Configurable for vibratory, impact, and auger applications
- 360-degree rotation for improved jobsite positioning
- Auto plumb and level functionality for efficient pile alignment
- Helical pile installation capabilities
- Compact 10-foot transport height for easier mobilization
- Transport up to two units per trailer to reduce hauling costs
- Proudly made in the USA
HMC offers multiple models to meet your jobsite needs.
- STR20 Self-Contained Track Rig
- STR20-RC Remote Control Track Rig
- STR20-DC Remote Control and/or Operator Control
- STR18-RC 49hp with remote control
- STR18-RC 74hp with remote control
STR20 Self-Contained Track Rig
Solar
The HMC STR20 combines the power of an impact driver, vibratory driver, and drill tool into one versatile self-contained track rig, giving operators unmatched flexibility on solar and small-pile installation projects.
- Three quick-change attachments for maximum versatility
- Configurable for vibratory, impact, and auger applications
- 360-degree rotation for improved jobsite positioning
- Auto plumb and level functionality for efficient pile alignment
- Helical pile installation capabilities
- Compact 10-foot transport height for easier mobilization
- Transport up to two units per trailer to reduce hauling costs
- Proudly made in the USA
HMC offers multiple models to meet your jobsite needs.
- STR20 Self-Contained Track Rig
- STR20-RC Remote Control Track Rig
- STR20-DC Remote Control and/or Operator Control
- STR18-RC 49hp with remote control
- STR18-RC 74hp with remote control
Read up about us in Solar Builder magazine! Discover how the STR20 can transform your business. Contact your rep today to find out how you can order an STR20.
Machine Specs |
|
|---|---|
Engine: Yanmar 73 HP, Tier 4 Final |
Hydraulics: 80 gal. |
Width: 98" |
Auto Plumb |
Height: ~120" (transport), 352" (working |
Ground Clearance: 12" |
Operating Weight: ~19,500 lbs. |
Ground Pressure Contact 400mm Tracks: ~7psi. |
Fuel: Diesel, 30 gal. |
Speed (high speed): 3mph, (low speed): 1.5mph |
Mast |
|---|
Length: 352", 24' Pile length |
Extend: 24" |
Side Shift: +/- 5" |
Tilt: +10°, -45° |
Slew: +/- 15° |
Options |
|---|
Laser Receiver, driven height control |
GPS Automation w/Trimble DSP900 |
Attachments |
|---|

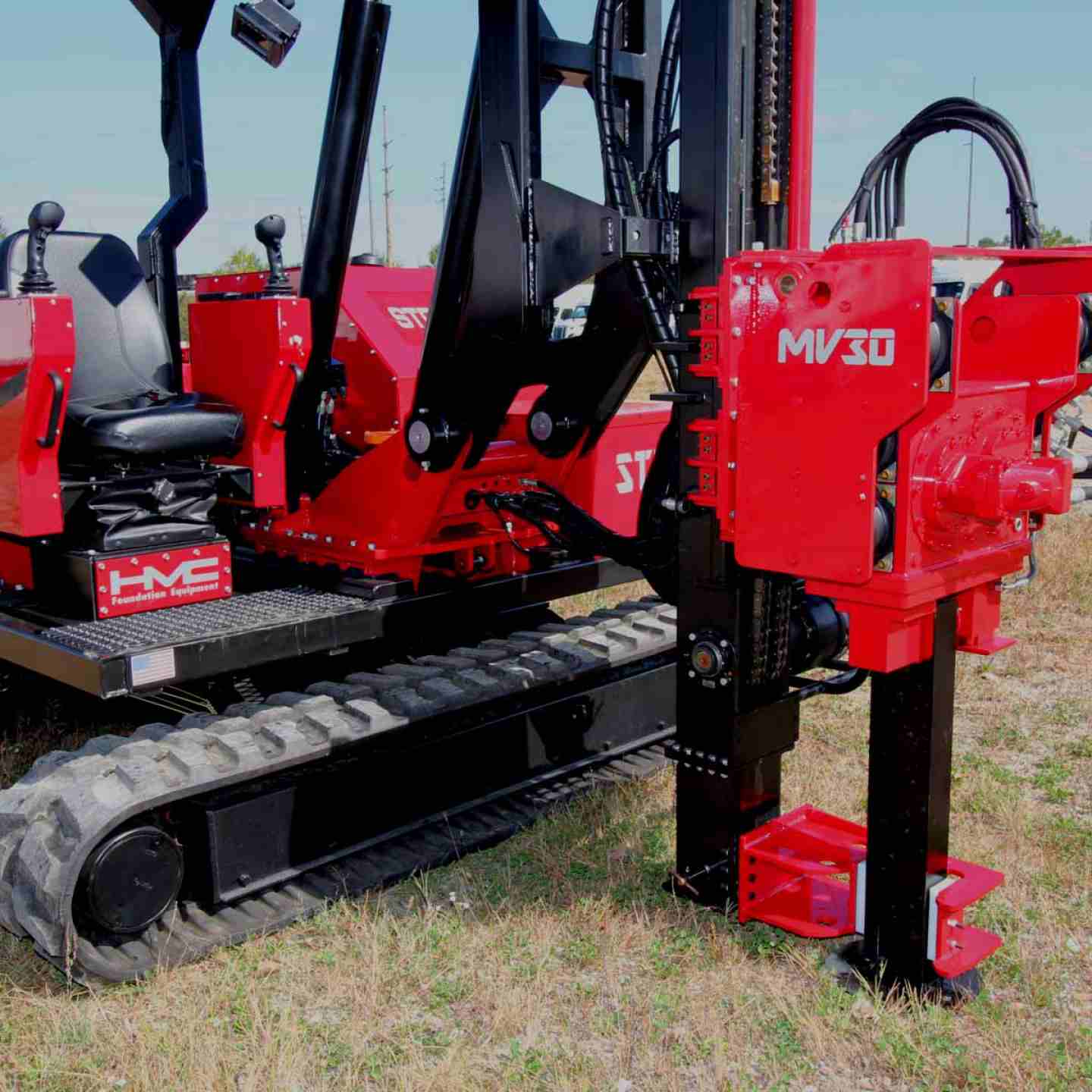

MV30 Vibro: 30 Tons of Eccentric Driving force, customizable clamp |
DT5 Drill: 2 speed, 4930/2465 ft/lbs torque, 2 1/2" Hex Output Shaft |
IH1250: 1,250 ft lbs. Variable 2 speed. Anti dry fire technology. 570-1180 BPM. Weight: 2,100lbs. |
