Pile Driving Equipment
HMC Sonic SideGrip® SP Series
Vibratory

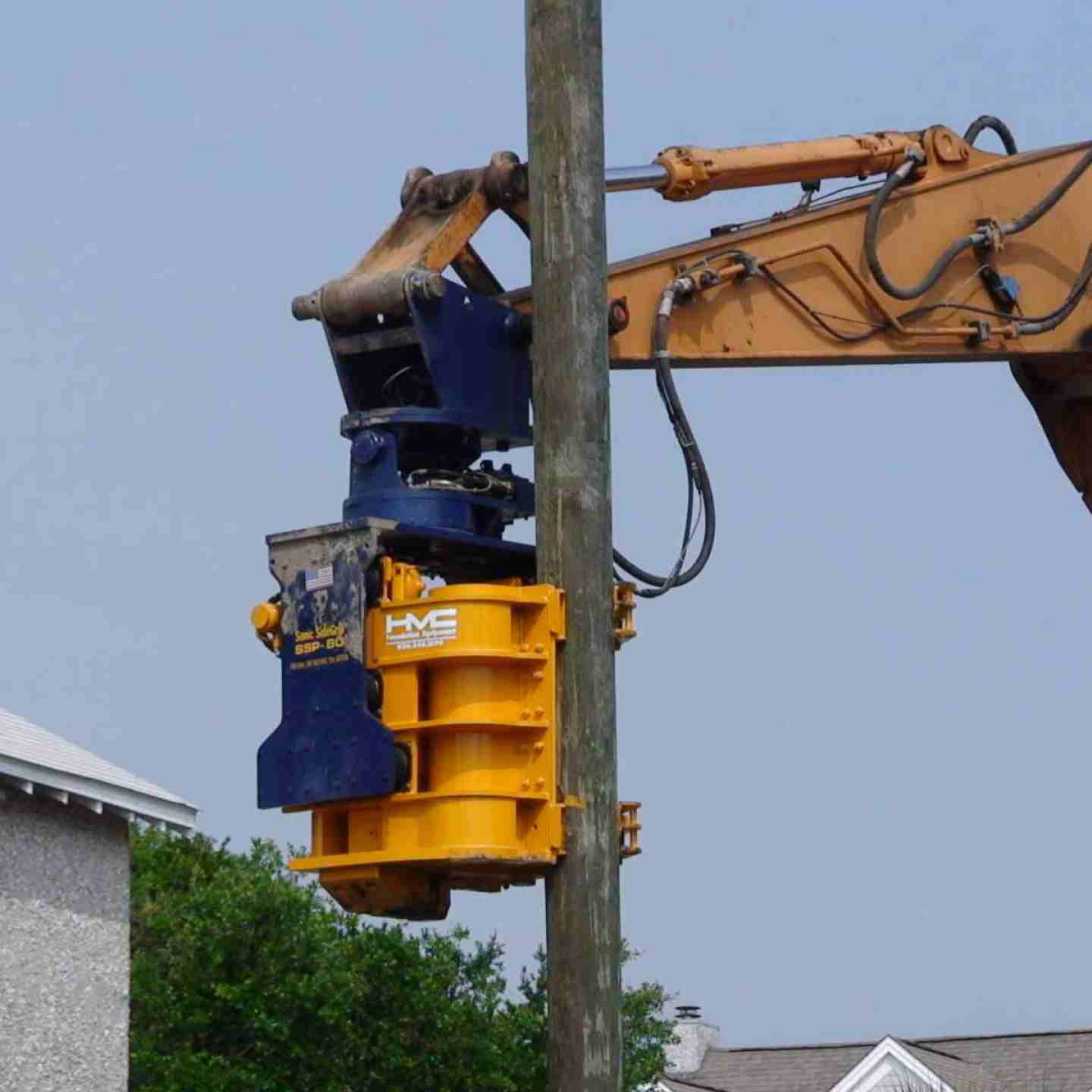

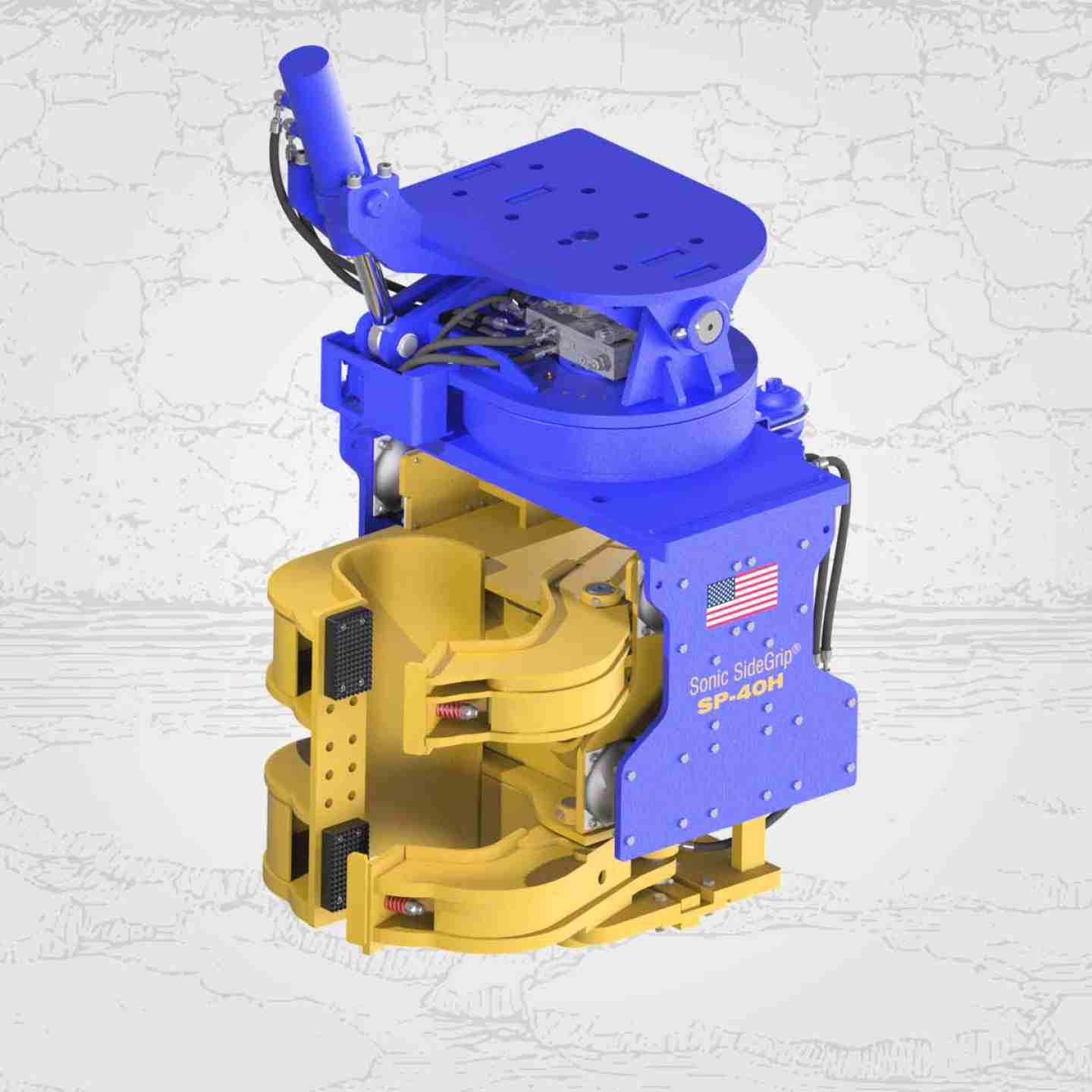

The HMC Sonic SideGrip® Vibratory Pile Driver is an excavator-mounted attachment with an articulating side grip that speeds the pile driving process on any job site.
Manufactured in the U.S.A., the Sonic SideGrip® uses an excavator’s hydraulics to safely and quickly pick up, unload, place, drive and extract piling. This innovative pile driver is designed to overcome obstacles such as low overhead clearance and narrow passageways, as well as eliminate the need for peripheral equipment to be used in the piling operation. The Sonic SideGrip® can handle pile up to 50′ long, H-beams, pipe pile and wood pile.
- High frequency vibration of 3000 cycles per minute liquifies the soil to speed driving and extracting.
- The 360º rotation and the three axis of movement allow for full range of motion.
- Industry leading 2-year warranty
- Proudly made in the USA
There is a model to suit every application, see below to compare model offerings.
Products Include:
- SPM30
- SP40
- SP50
- SP60
- SP80
- SP100
HMC Sonic SideGrip® SP Series
Vibratory
The HMC Sonic SideGrip® Vibratory Pile Driver is an excavator-mounted attachment with an articulating side grip that speeds the pile driving process on any job site.
Manufactured in the U.S.A., the Sonic SideGrip® uses an excavator’s hydraulics to safely and quickly pick up, unload, place, drive and extract piling. This innovative pile driver is designed to overcome obstacles such as low overhead clearance and narrow passageways, as well as eliminate the need for peripheral equipment to be used in the piling operation. The Sonic SideGrip® can handle pile up to 50′ long, H-beams, pipe pile and wood pile.
- High frequency vibration of 3000 cycles per minute liquifies the soil to speed driving and extracting.
- The 360º rotation and the three axis of movement allow for full range of motion.
- Industry leading 2-year warranty
- Proudly made in the USA
There is a model to suit every application, see below to compare model offerings.
Products Include:
- SPM30
- SP40
- SP50
- SP60
- SP80
- SP100
- 1.5" bottom plate
- Modular fixed jaw
- Adjustable flow control-tilt & rotate
- Steel manifold
- 4" elastomers
- 2-year warranty on all models
- Download an SP Series model comparison sheet
Features
- Designed to match small size excavators and to combine a robust structure with excellent pile handling characteristics.
- High frequency pile driver with fixed eccentric moment.
- Fitted with heavy-duty arms/clamps capable of driving a wide range of piles including sheet piles, H-timber piles, tubular steel piles and other pile selections.
- The unit is always equipped with one of the standard arm/clamp systems and the bottom clamp. Customized arms and clamps are available upon special request.
Technical Data |
||
|---|---|---|
Weight (excl. adapter) |
lbs |
2738 |
Height |
in |
73 |
Depth |
in |
42 |
Width |
in |
38 |
Excavator class |
t |
12-24 |
Engine power, min |
hp |
80 |
Return pressure max |
psi |
100 |
Pressure setting |
psi |
3000 |
Frequency |
1/min |
3500 |
Centrifugal force, max |
ton |
30 |
Ground vibration |
low |
|
Resonance-free start/stop |
no |
|
Driving method |
vibration |
|
Swing/tilt angle |
° |
360°/15° |
Suitable Piles
Types & Dimensions |
||
|---|---|---|
Sheet Piles |
width |
12"-28" |
H-beams |
size |
8"-12" |
Timber piles |
size |
12" butt |
Tubular piles, tubes |
size |
12" OD |
Length & Weight |
|
|---|---|
10' x 1500 lbs |
20' x 1200 lbs |
15' x 1300 lbs |
25' x 1100 lbs |
Features
- Designed to match small to medium size excavators and to combine a robust structure with excellent pile handling characteristics.
- High frequency pile driver with fixed eccentric moment.
- Fitted with heavy-duty arms/clamps capable of driving a wide range of piles including sheet piles, H-piles, tubular steel piles and other pile sections.
- The unit is always equipped with one of the standard arm/clamp systems and the bottom clamp. Customized arms and clamps are available upon special request.
Technical Data |
||
|---|---|---|
Weight (excl. adapter) |
lbs |
4,026 |
Height |
in |
74 |
Depth |
in |
48 |
Width |
in |
44 |
Excavator class |
t |
18-20 |
Engine power, min |
hp |
134 |
Return pressure, max |
psi |
72,5 |
Pressure setting |
psi |
4,000 |
Frequency |
1/min |
3000 |
Centrifugal force, max |
ton |
40 |
Ground vibration |
low |
|
Resonance-free start/stop |
no |
|
Driving method |
vibration |
|
Swing/tilt angle |
° |
360 / ± 30 |
Suitable Piles
Types & Dimensions |
||
|---|---|---|
Sheet Piles |
width |
12"-48" |
depth |
12" |
|
H-beams |
size |
10"-14" |
Timber piles |
size |
14" butt |
Tubular piles, tubes |
size |
13" OD |
Length & Weight |
|---|
20' x 5100 lbs |
40' x 3500 lbs |
50' x 3000 lbs |
Features
- Designed to match small to medium size excavators and to combine a robust structure with excellent pile handling characteristics.
- High frequency pile driver with fixed eccentric moment.
- Fitted with heavy-duty arms/clamps capable of driving a wide range of piles including sheet piles, H-piles, tubular steel piles and other pile sections.
- The unit is always equipped with one of the standard arm/clamp systems and the bottom clamp. Customized arms and clamps are available upon special request.
Technical Data |
||
|---|---|---|
Weight (excl. adapter) |
lbs |
4,070 |
Height |
in |
74 |
Depth |
in |
48 |
Width |
in |
44 |
Excavator class |
t |
25 |
Engine power, min |
hp |
168 |
Return pressure, max |
psi |
72,5 |
Pressure setting |
psi |
4,000 |
Frequency |
1/min |
3000 |
Centrifugal force, max |
ton |
50 |
Ground vibration |
low |
|
Resonance-free start/stop |
no |
|
Driving method |
vibration |
|
Swing/tilt angle |
° |
360 / ± 30 |
Suitable Piles
Types & Dimensions |
||
|---|---|---|
Sheet Piles |
width |
12"-48" |
depth |
12" |
|
H-beams |
size |
10"-14" |
Timber piles |
size |
14" butt |
Tubular piles, tubes |
size |
13" OD |
Length & Weight |
|---|
20' x 5100 lbs |
40' x 3500 lbs |
50' x 3000 lbs |
Features
- Designed to match the capabilities of larger excavators and to combine a robust structure with excellent pile handling characteristics.
- High frequency pile driver with fixed eccentric moment.
- Fitted with heavy-duty arms/clamps capable of driving a wide range of piles including sheet piles, H-piles, tubular steel piles and other pile sections.
- The unit is always equipped with one of the standard arm/clamp systems and the bottom clamp. Customised arms and clamps are available upon special request.
Technical Data |
||
|---|---|---|
Weight (excl. adapter) |
lbs |
4,114 |
Height |
in |
74 |
Depth |
in |
48 |
Width |
in |
44 |
Excavator class |
t |
25-30 |
Engine power, min |
hp |
180 |
Return pressure, max |
psi |
72,5 |
Pressure setting |
psi |
4,000 |
Frequency |
1/min |
3000 |
Centrifugal force, max |
ton |
60 |
Ground vibration |
low |
|
Resonance-free start/stop |
no |
|
Driving method |
vibration |
|
Swing/tilt angle |
° |
360 / ± 30 |
Suitable Piles
Types & Dimensions |
||
|---|---|---|
Sheet Piles |
width |
12"-48" |
depth |
12" |
|
H-beams |
size |
10"-14" |
Timber piles |
size |
14" butt |
Tubular piles, tubes |
size |
13" OD |
Length & Weight |
|---|
20' x 5100 lbs |
40' x 3500 lbs |
50' x 3000 lbs |
Features
- Designed to match the capabilities of larger excavators and to combine a robust structure with excellent pile handling characteristics.
- High frequency pile driver with fixed eccentric moment.
- Fitted with heavy-duty arms/clamps capable of driving a wide range of piles including sheet piles, H-piles, tubular steel piles and other pile sections.
- The unit is always equipped with one of the standard arm/clamp systems and the bottom clamp. Customized arms and clamps are available upon special request.
Technical Data |
||
|---|---|---|
Weight (excl. adapter) |
lbs |
5,280 |
Height |
in |
87 |
Depth |
in |
48 |
Width |
in |
44 |
Excavator class |
t |
25-40 |
Engine power, min |
hp |
220 |
Return pressure, max |
psi |
72,5 |
Pressure setting |
psi |
4,450 |
Frequency |
1/min |
3000 |
Centrifugal force, max |
ton |
80 |
Ground vibration |
low |
|
Resonance-free start/stop |
no |
|
Driving method |
vibration |
|
Swing/tilt angle |
° |
360 / ± 30 |
Suitable Piles
Types & Dimensions |
||
|---|---|---|
Sheet Piles |
width |
12"-48" |
depth |
12" |
|
H-beams |
size |
10"-14" |
Timber piles |
size |
14" butt |
Tubular piles, tubes |
size |
13" OD |
Length & Weight |
|---|
20' x 6000 lbs |
40' x 4000 lbs |
50' x 3000 lbs |
Features
- Designed to match the capabilities of larger excavators and to combine a robust structure with excellent pile handling characteristics.
- High frequency pile driver with fixed eccentric moment.
- Fitted with heavy-duty arms/clamps capable of driving a wide range of piles including sheet piles, H-piles, tubular steel piles and other pile sections.
- The unit is always equipped with one of the standard arm/clamp systems and the bottom clamp. Customized arms and clamps are available upon special request.
Technical Data |
||
|---|---|---|
Weight (excl. adapter) |
lbs |
5,280 |
Height |
in |
87 |
Depth |
in |
48 |
Width |
in |
44 |
Excavator class |
t |
30-50 |
Engine power, min |
hp |
247 |
Return pressure, max |
psi |
72,5 |
Pressure setting |
psi |
4,680 |
Frequency |
1/min |
3000 |
Centrifugal force, max |
ton |
100 |
Ground vibration |
low |
|
Resonance-free start/stop |
no |
|
Driving method |
vibration |
|
Swing/tilt angle |
° |
360 / ± 30 |
Suitable Piles
Types & Dimensions |
||
|---|---|---|
Sheet Piles |
width |
12"-48" |
depth |
12" |
|
H-beams |
size |
10"-14" |
Timber piles |
size |
14" butt |
Tubular piles, tubes |
size |
13" OD |
Length & Weight |
|---|
20' x 6000 lbs |
40' x 4000 lbs |
50' x 3000 lbs |
